Product Overview
Features
- UNIQUE JET SPRAY scrubber design deaerator guarantees removal of all dissolved oxygen in excess of .005 cc/liter (7 ppb)
- ELECTRONIC INSTRUMENTATION FOR MODULATING DEAERATOR LEVEL control includes a HART compatible differential pressure transmitter, PID controller, and motorized control valve
- MULTIPLE DEAERATOR CONFIGURATIONS: vertical or horizontal vessels provide maximum flexibility using minimum footprint
- ONLY STAINLESS STEEL components come in contact with undeaerated water. Deaerator spray nozzle, scrubbing section and internal vent condenser are all stainless steel
- A.S.M.E. Code and National Board stamped receivers – 50 psi standard vessel options include stress relieving, non-destructive testing and full vacuum
- CUSTOM ENGINEERED PACKAGED DEAERATOR SYSTEM includes boiler feedwater pumps and quality components to insure reliable service
Advantages
- The Jet Spray deaerator provides excellent performance utilizing the high velocity incoming steam to atomize makeup water and pumped returns. Stainless steel internal components provide reliable performance for many years. This superior spray-type design directs the cleanest incoming steam to scrub out the last traces of oxygen from the cleanest water
- GUARANTEED DEAERATOR PERFORMANCE .005 cc/liter per ABMA testing procedures. Standard sizes ranging from 6,900 lbs/hr to 300,000 lbs/hr
- CUSTOM ENGINEERED PACKAGED DEAERATOR SYSTEM results in a small foot print, minimal onsite installation costs, and a single source of responsibility for all major components
Operation
WATER FLOW- Incoming undeaerated water and pumped returns enter the deaerator through a spring-loaded stainless steel nozzle which directs the flow in conical sheets into the steam atmosphere of the direct contact vent condenser. At this point, the water temperature in the deaerator is raised to within a few degrees of steam temperature and most of the corrosive, non-condensable gases are removed. The water is directed by a stainless steel tray section into the Jet Spray atomizing valve. Here a high velocity of incoming pure steam atomizes the water into minute particles. This violent scrubbing action removes the last traces of dissolved gases. The hot, deaerated water then falls to the storage compartment for boiler use.
STEAM FLOW- Steam initially enters the deaerator through a special stainless steel Jet Spray atomizing valve. This valve is designed to fully atomize and provide complete deaeration under all load conditions. This design insures that the purest steam comes in contact with the purest water. Once this high velocity steam mechanically shakes out the last traces of non-condensable gases from the water, it flows upward into the preheated area where it meets the incoming makeup water and pumped returns. This water continually condenses the steam which preheats and releases the non-condensable gases into the internal vent condenser where they are metered harmlessly from the deaerator into the atmosphere. This action causes more steam to be drawn into the system to complete the cycle.
Jet Spray Pressurized Deaerator – Capacity
• Consult Factory for systems over 300,000 lbs./hr.
• Weights do not include pumps or optional equipment
• * Includes 48″ Stand
• ** Includes Control Panel

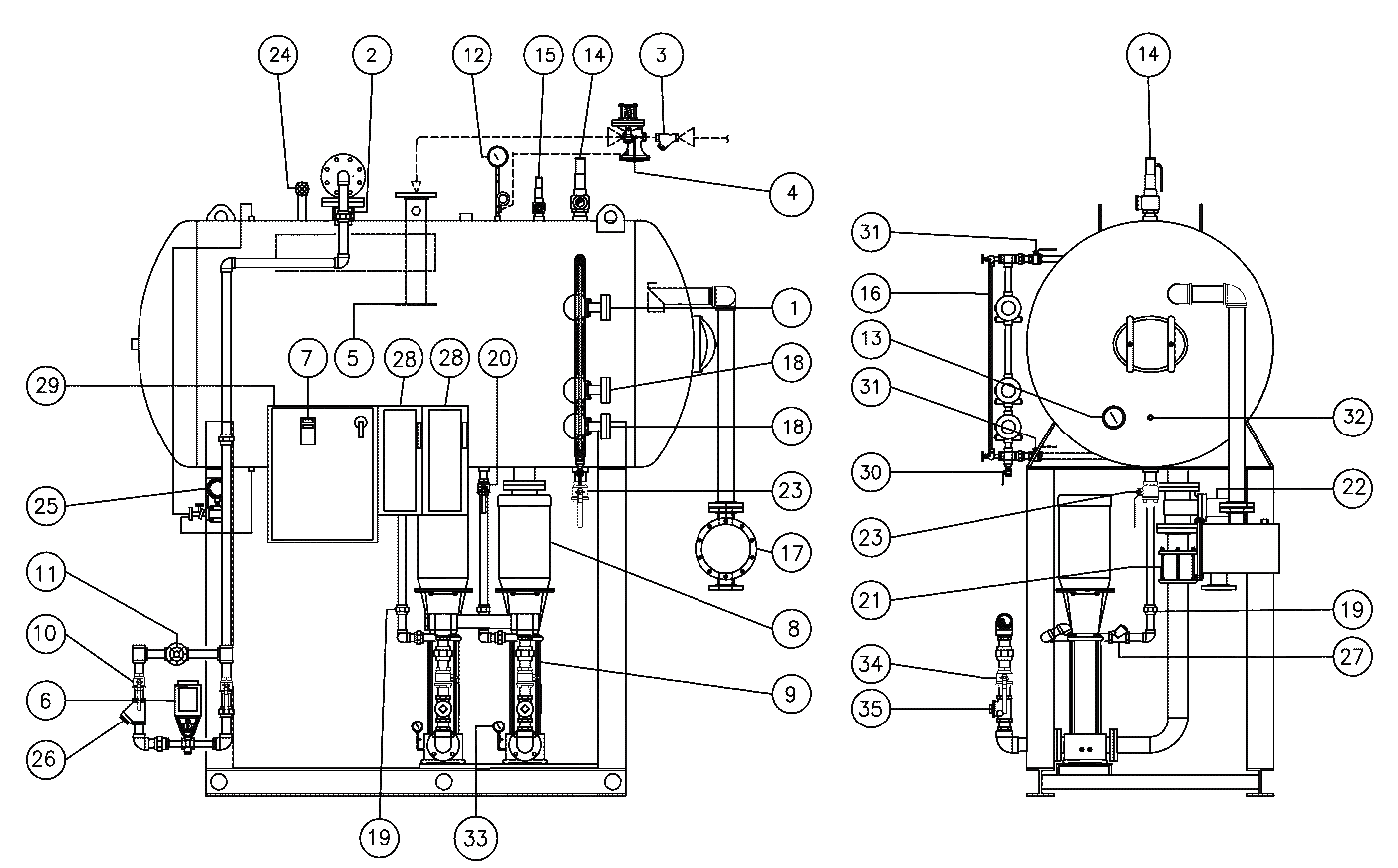

- High Water Alarm Switch
- Make-up Nozzle
- Y-Strainer
- Pressure Control Valve
- Steam Nozzle
- Make-up Control Valve
- Level Controller
- Boiler Feed Pump Motor
- Boiler Feed Pump
- Make-up Ball Valve
- Make-up Globe Valve
- Pressure Gauge (0-15#) w/Cock
- Temperature Gauge w/Thermowell
(50 DEGREE –
500 DEGREE F) - Safety Relief Valve
(Set at 50#) - Sentinal Relief Valve
(Set at 20#) - Water Gauge Glass
- Overflow Trap
- Low Water Alarm &
Cut Off Switch - Recirculation
Orifice Union - Recirculation Ball Valve
- Suction Coupling
- Suction Gate Valve
- Drain Ball Valve
- Vent Gate Valve
- Level Transmitter
- Make-up Y-Strainer
- Recirculation Check Valve
- Starter
- Control Panel (NEMA 1)
- Water Column Drain
Ball Valve - Water Column Isolation Ball Valve
- Chemical Feed Quill
- Discharge Pressure
Gauge (0-400#) - Discharge Ball Valve
- Discharge Check Valve
